HSU-R Stone Cutting Anchor

Short Description:

The HSU-R Stone Cut-Under Anchor is an ultra-high-performance stone cut-under anchor. Made of corrosion-resistant A4 stainless steel, it offers reliable operation in a wide range of environments, including indoors, in transient humid/condensing environments, outdoors (over 1 km from the coast), and in dry indoor locations. This anchor features an externally threaded head, offering unique advantages during installation and subsequent use. In terms of certifications and test reports, it holds ETA certification, indicating that it has passed European technical assessments and meets relevant standards and requirements for performance and quality. It can be widely used in various stone fastening projects, particularly in exterior cladding of natural stone such as granite, marble, sandstone, and limestone (compliant with EN 1469:2004).

Pack Size: 250 pc

Send email to us

Product Detail

Product Tags

Features

Head marking and unique wave design for easier identification after installation.
Patented unique wave design reduces spinning and minimises sleeve drop-off during panel assembly.
Clear red marking shows when anchor undercut is complete.
Designed for fastening façade slabs of natural stone including granite, marble, sandstone and limestone (as per EN1469:2004).

Technical data

Material, corrosion	Stainless steel, A4
Head configuration	Externally threaded
Approvals / test reports	ETA
Max. fixture thickness at standard embedment depth	10 mm
PROFIS software	No

Applications

-Granite cladding
-Marble cladding
-Limestone cladding
-Sandstone cladding
-Nature stone facade

Instructions

Specification

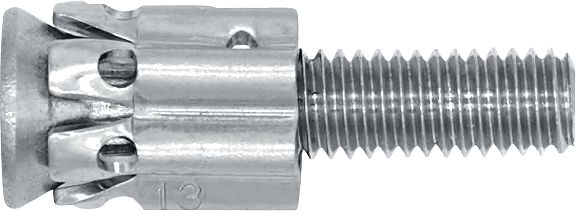

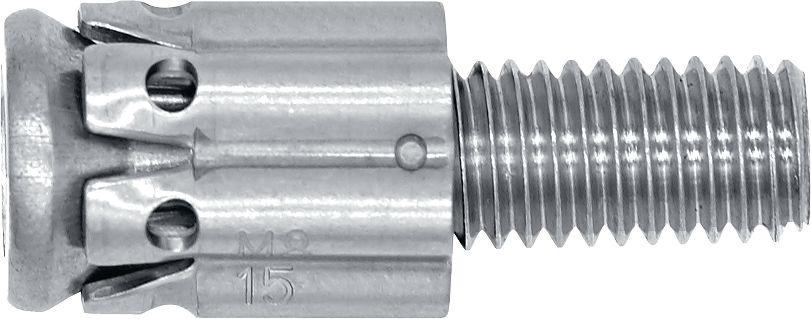

The standard embedment depth for M6 anchor bolts is 13mm, and the corresponding maximum fixture thickness is 10mm. M8 anchor bolts have two standard embedment depths: 15mm and 21mm, and both have a maximum fixture thickness of 14mm.
