HIT-HY 170 Adhesive Anchor
Features &Benefits
Features

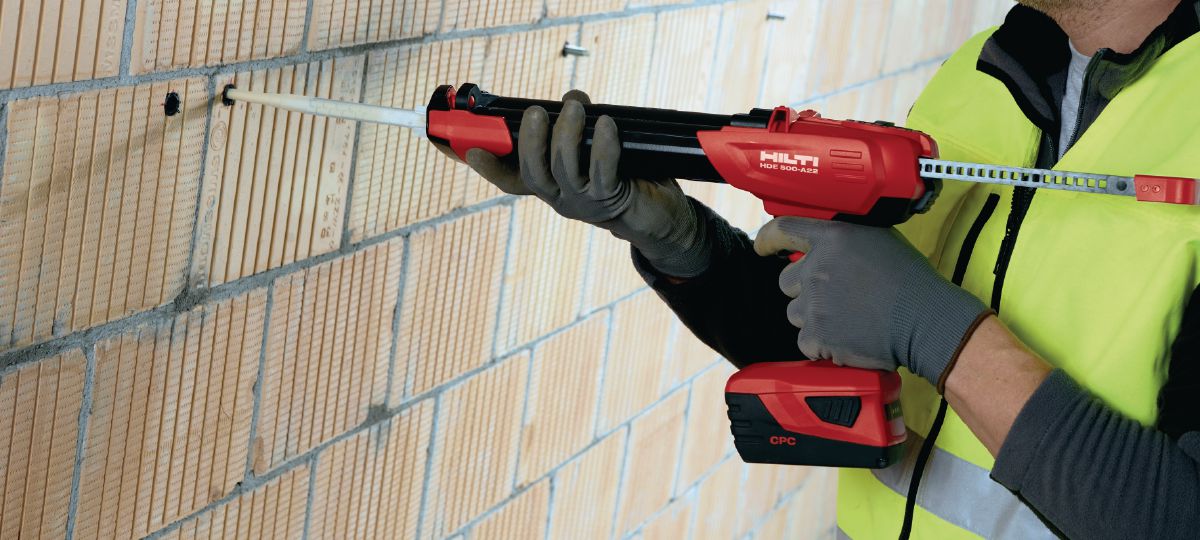

-Suitable for use in masonry materials or cracked and uncracked concrete with all anchor rods (ETA report)
-Provides strong, reliable and easily installed fastenings in concrete and masonry materials
-Working time optimised for anchoring applications in concrete and masonry
-Suitable for indoor and outdoor applications as well as use in dry and wet hole conditions
-Extensive range of accessories available (e.g. sleeves, cordless electric dispenser)
Benefits
- Suitable for concrete C12/15 to C50/60
- Suitable for dry and water saturated concrete
- High loading capacity and fast cure
- High corrosion resistant
- For rebar diameters up to 32 mm

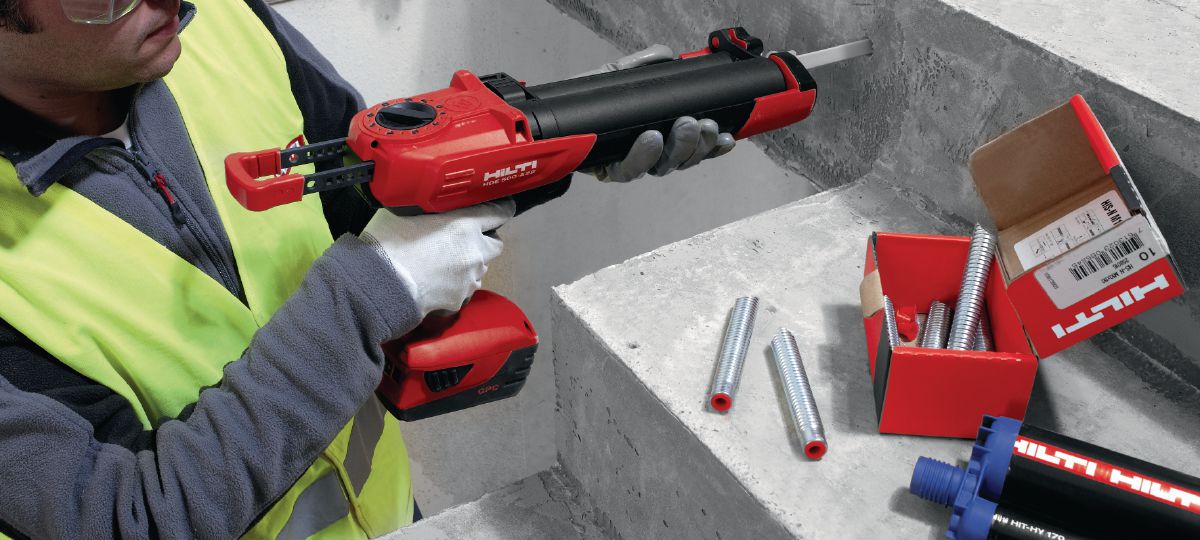

- Automatic borehole cleaning using Hilti hollow drill bit for hammer drilling and accurate dosing with HDE
- Manual cleaning for drill hole sizes ≤ 20 mm and embedment depth hef ≤ 10d
- Suitable for embedment depth up to 1250 mm depending on the rebar diameter
Technical data
2-Component-foilpack, contains:
Component A: Urethane methacrylate resin, inorganic filler
Component B: Dibenzoyl peroxide, phlegmatized
| A | ||
| N a m e | C A S N o . | % |
| 2-Propenoic acid, 2-methyl-, monoester with 1,2-propanediol | 2 7 8 1 3 - 0 2 - 1 | 1 0 - 2 5 |
| 2-Propenoic acid, 2-methyl-, 1,4- butanediyl ester | 2 0 8 2 - 8 1 - 7 | 1 - 2 . 5 |
| 1,1'-(p-tolylimino)dipropan-2-ol | 3 8 6 6 8 - 4 8 - 3 | 0 . 1 - 1 |
| B | ||
| N a m e | C A S N o . | % |
| d i b e n z o y l p e r o x i d e | 9 4 - 3 6 - 0 | 5 - 1 0 |
Applications
- Light- and medium-duty anchoring applications such as window bars, sanitary equipment, awnings, air conditioning systems, lights
- Anchoring light structural steel connections such as steel columns and beams
- Anchoring secondary steel elements
- Renovation / upgrades with post-installed rebars
- Substitution of misplaced / missing rebars
Instructions
- Surfaces and materials should be clean and free of dust and grease. When used as adhesive: apply in beads or dots onto the material which needs to be bonded, press the material strongly onto the substrate and leave to set. When used as sealant: apply in a regular bead and smoothen immediately with Soudal Joint Finish or a soapy solution. Optimal application temperature +5°C until +25°C. Final strength will be achieved 24 hours after application.
Environmental conditions
Costal areas / Roads with de-icing salt, Dry indoor, Highly corrosive special applications (e.g. tunnels, swimming pools), Indoor with temporary condensation, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Cerificate Information
About NSF/ANSI/CAN 61 Certification
NSF (National Sanitation Foundation) is a widely recognized authority. The NSF/ANSI/CAN 61 standard primarily targets products that come into contact with drinking water. It assesses whether these products and their components meet health and safety requirements, ensuring that no substances harmful to human health are released into the water during contact with drinking water. The HIT-HY 170's certification signifies its safety and compliance in drinking water contact scenarios, ensuring the hygienic safety of drinking water-related uses.
About LEED Certification (introduced by the U.S. Green Building Council (USGBC))
LEED (Leadership in Energy and Environmental Design) is a globally recognized green building rating system designed to promote higher standards in energy efficiency, sustainability, and environmental protection. Buildings or products covered by the HIT-HY 170 that adhere to LEED standards demonstrate that they meet advanced sustainability requirements in terms of environmental protection, energy conservation, and energy reduction, helping to reduce negative environmental impacts and promoting the development of green buildings and green products.
About CE Certification and ETA Marking
The CE mark is a mandatory safety certification for products in the European market, indicating compliance with relevant European laws and regulations on health, safety, and environmental protection, allowing free movement within the European Economic Area (EEA). The European Technical Assessment (ETA) is a European technical assessment certification for construction products, used to determine whether they meet harmonized European technical performance requirements. The HIT-HY 170 has both the CE mark and the ETA mark, indicating that it meets the strict European market standards for technical performance and safety, allowing it to enter the European market and be used legally in construction and other related fields.
