HIT-HY 200-A V3 ADHESIVE ANCHOR

Short Description:

The HIT-HY 200-A V3 adhesive chemical anchor is an ultra-high-performance, injectable anchoring adhesive and a fast-curing chemical anchoring system. Its proven performance has earned it certifications for use in anchor plates and post-anchored rebar connections in concrete structures. Its certifications and test reports include an ETA report and an ICC-ES report for concrete, and it supports PROFIS software. To ensure product performance, the temperature must be controlled within the 5-25°C range during storage and transportation.

PROFIS: Yes

Package: 330ml/tube,500ml/tube

Send email to us

Product Detail

Product Tags

Features

- Faster curing - Optimized for anchoring applications in dry concrete, damp concrete, or open water drill holes, operating in a wide temperature range (-10°C to +40°C).
- Easier to design and order - Use PROFIS engineering software to design steel-to-concrete or concrete-to-concrete connections according to EC2, TR069, TR082, or the Hilti design method.
- Versatile chemical anchor for a variety of conditions - Certified for use with hammer drills, core drills, and diamond core drills (using TE-YRT).
- Faster, simpler, and safer installation - Combined with our fully cordless SafeSet system, this provides a seamless installation solution, reducing on-site time and installation errors.
- Extensive certifications - including ETA for cracked and uncracked concrete, C2 seismic resistance, fire resistance data, and a service life of up to 100 years for both rebar and anchors.

Approvals/Certificates

Approval no	Application/Loading codition	Authority/Laboratory
ETA-19/0600	Static and quasi-static / Seismic / Fire	DIBt, Berlin
ETA-19/0665	Static and quasi-static	iTAB, Milan
No.11/2023	Engineering Judgement (120-years working life based on EAD 330087-01-0601)	BERGMEISTER, Vienna
No.03/2024	Engineering Judgement (120-years working life based on EAD 332402-00-0601-v01- )	BERGMEISTER, Vienna

Applications

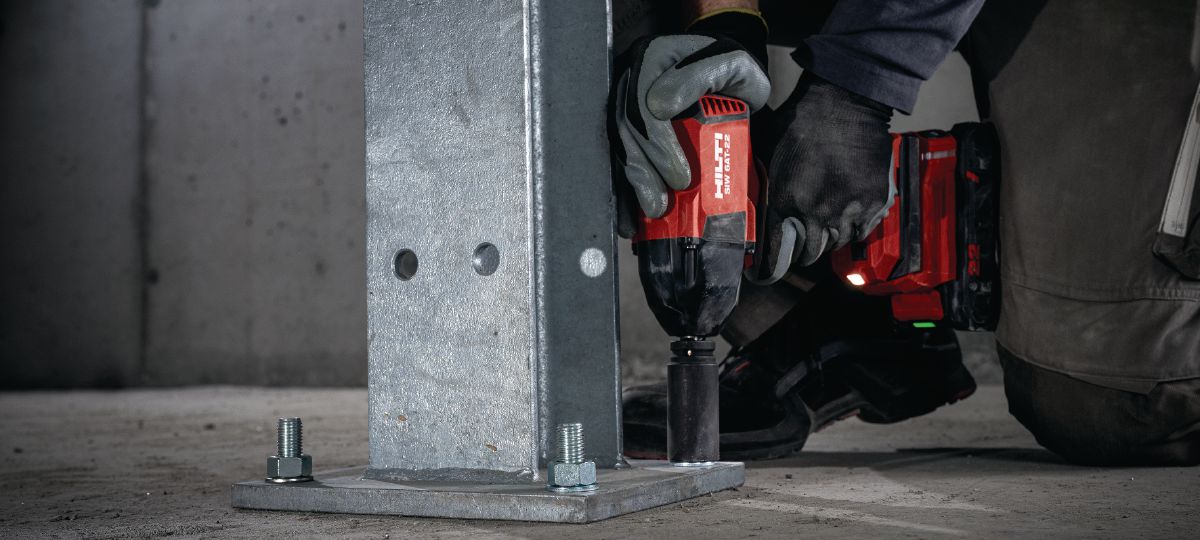

- Anchoring structural steel connections (e.g., steel columns, beams, etc.) to concrete.
- Fastening secondary steel structures (e.g., racking, machinery, guardrails, noise barriers) to concrete.
- Designing concrete connections with robust, simple supports.

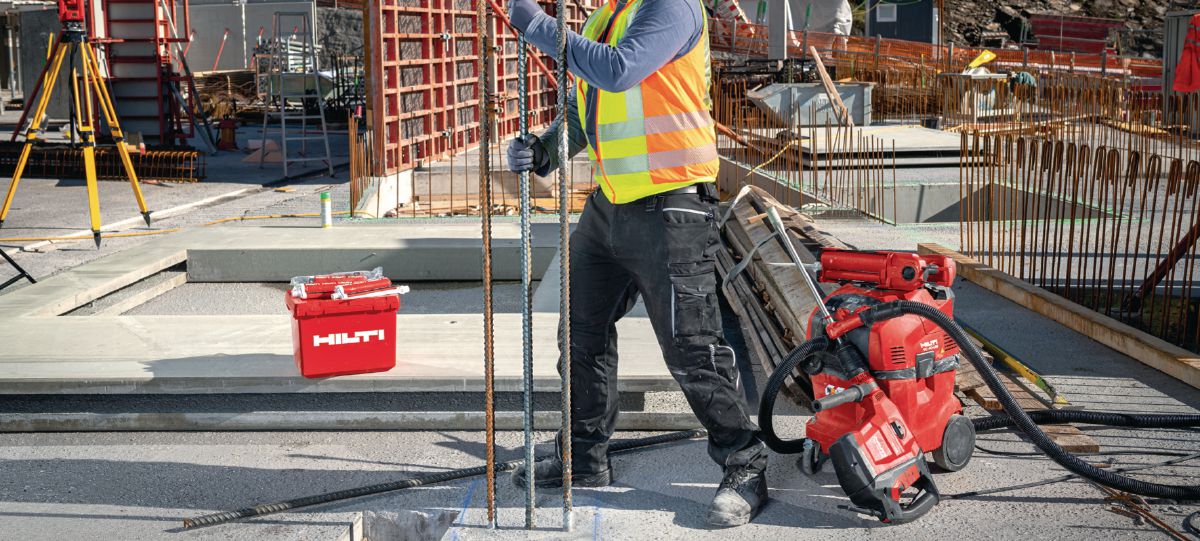

- Concrete reinforcement and retrofitting of reinforced concrete buildings, including using post-anchored rebar or replacing misplaced or missing pre-anchored rebar.
- Structural concrete connections using post-anchored rebar (anchored rebar).

Benefits

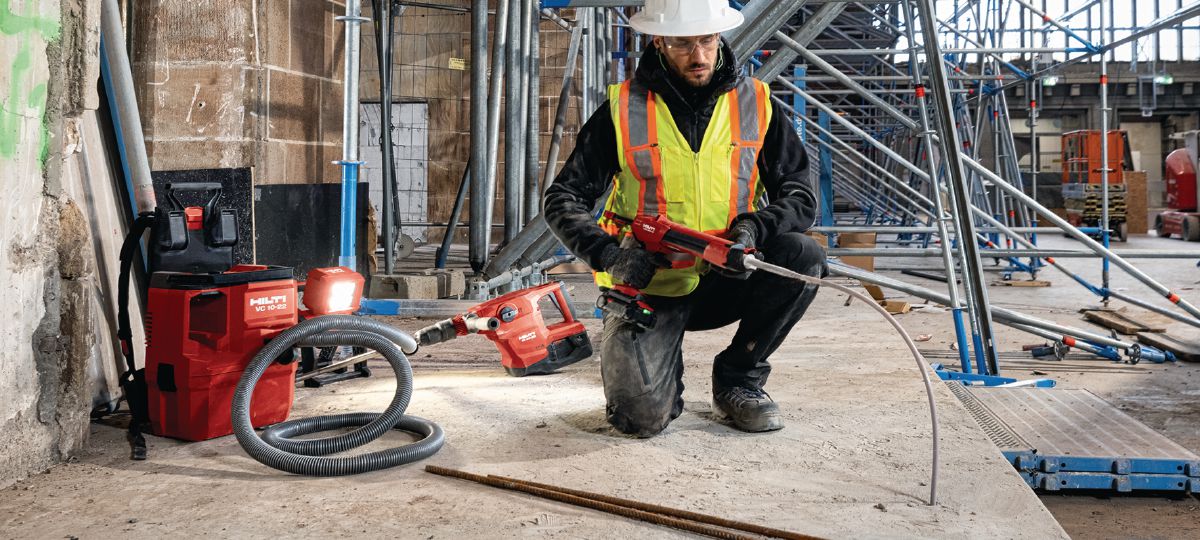

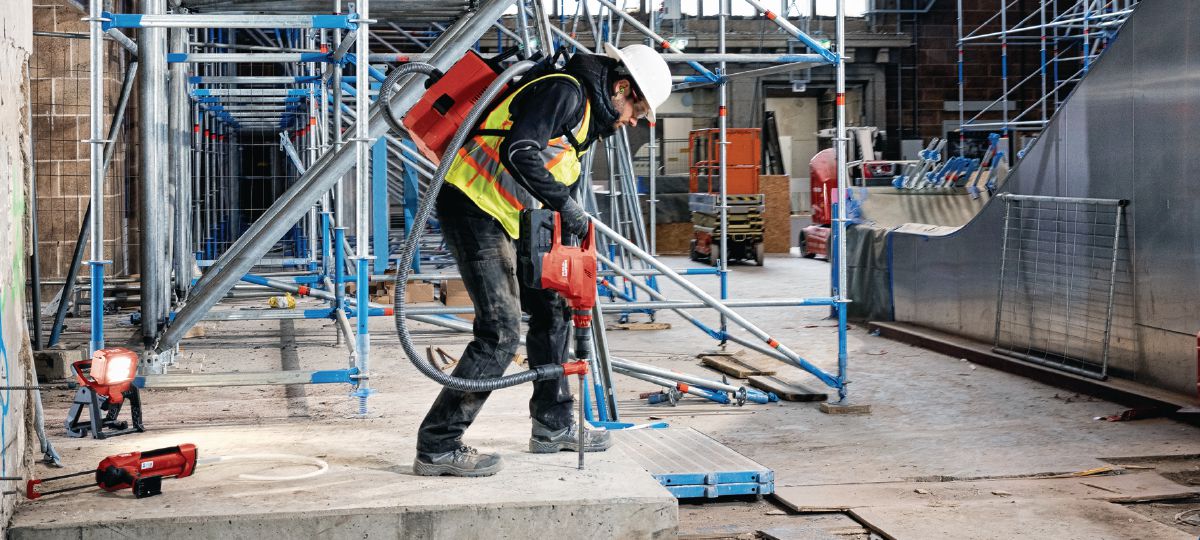

-Makes installation steps faster,simpler, and safer. Automatic borehole cleaning with hollow drill bits and accurate dosing with HDE.
- Suitable for concrete C12/15 to C50/60.
- Suitable for dry and water saturated concrete.
- For rebar diameters up to 40 mm for static design according to EN 1992-1-1.
- Non-corrosive to rebars.
- Good load capacity at elevated temperatures.
- Suitable for embedment lengths up to 1000 mm.
- Suitable for applications down to -10 °C concrete temperature.
